The 2010's - The Age of 3D CAD Nothingness


This is the fifth in a series of articles documenting my experience with the introduction of 3D CAD into industrial/mechanical engineering. Please take some time to read them all. From board draftsman, to 3D CAD designer, to 3D CAD/CAM program dealer, to 3D CAD teacher, some of this information may surprise you.


54 Years of Engineering


My First 17 Years or "How did we do it without 3D CAD!"

The 1980's - 3D CAD - The Beginning

The 1990's - 3D CAD/CAM Moves to the PC!!

The 2000's - The Age of 3D CAD Un-Enlightenment!

The end of decade report


3D CAD had a decade of nothingness!


CAD - Computer Aided Design?


We have pretty much reached the end of modeling enhancements.


All of the major 3D CAD systems are Pro/e clones still operating on the basic dated system released in 1988!


It is a strict history based and constrained sketching system.

It has separate part, assembly and AID files.

All of these parts, AIDs and Sub-Assemblies are associated forever.


1. The dated (1988) Pro/e CAD paradigm of strict history based on complex constrained sketching. This limited modeling technique is very time consuming. Sadly, this process has been accepted as normal.

It has not changed! How can that be? Nothing stays stagnant! It has been 32 years.

Here is a system that was introduced in 1998. I sell it because it is a much more productive system. I could have settled my engineering services on these systems that I have tried to sell: Pro/e, Solid Edge, Solidworks and Inventor.

Five Functions that Increase 3D CAD Productivity!!

Here is the other system that would virtually eliminate PLM and PDM and the need for MBE (PMI)

The Ultimate 3D CAD System

I introduce you to StreamLined Sketching and Feature Based Modeling in these following lessons. They started out as product comparisons. But when I saw the convoluted way the presenters were modeling with simple parts with constrained sketching only I realized the huge amount of wasted design time. See how your favorite system fairs as compared to my modeling concept.

3D Modeling Techniques Defined

2. The Pro/e paradigm is based on separate parts, assemblies and AIDs (drawings). This has spawned the data management programs of PDM, PLM, MBE (PMI) just to manage all of the associated files. This has  become a model and documentation nightmare. Again, all has been accepted as normal.

IronCAD vs CATIA Lesson 3 Assembly

ZW3D vs Catia Lesson 3 Assembly

3. The implementation of PLM has led to the elimination of the drafting group, turning engineers into "glorified draftsmen" now responsible for all documentation and "GT&D". This is not to insult engineers; this was to cut engineering costs and the engineer was the fall guy and still is. Engineering in the large companies are now under the thumb of unworkable processes developed by unknowledgeable PLM Gurus, vested interest CAD companies and InfoTechs (IT).

The Death of the Draftsman or “Where has all the talent gone?”

Engineering Yesterday & Today
Engineer's Job Description
The Search for the Purple Squirrel

Yes, all of this was caused by the Pro/e paradigm. I can tell you engineering was much more productive when it was based on the manual drawing. Not because of the engineer, but the vested interests of the InfoTechs. Remember all we did was add the 3D model as a pattern.

Engineering management is now in the hands of millennial! These fellows have never known an effective engineering system. Nope, this effective engineering system is not documented because it lived in the skills of the drafting and document control group.

Engineering's only purpose is making available concise, complete and  unambiguous engineering documentation to manufacturing.

Engineering documentation is engineering's language to the world.

Educating the New 3D CAD Engineer

The Millennial 3D MCAD Engineer

Should the New 3D CAD Engineer Learn Drafting?


There is no money in CAD?


Everyone that needs a seat has a seat and to try to move them to a new system is like talking someone into changing their cell service provider. Trust me.


To keep their customers paying most have gone to SAAS (Software as a Service) or Subscription Only! Looks like this is the way of the future. Due to the lack of enhancements to motivate the customer to stay current with an annual maintenance. More than likely they will downsize and probably drop the rates! Maybe!!


To make money they are now pushing tangential services. The major CAD system are moving further and further from their users and basic purpose of creating CAD models. They are now promoting to the the CIO (Chief Information Officers, the most important person in the C-suite) that are focused on the biggest fraud of all "Digital Transformation" one of the most generic terms of the century! The CEO is now like a mushroom and is fed the crap by the CIO and his InfoTech team and cult.


Digital Transformation is the buzz word of the decade. This seems to be an effort by the InfoTechs take control by having companies in a continuous state of transition. Most large companies now have a CIO that leads the charge. It is like having the fox watch the hen house. He who controls the software controls the world. It is like having Bob the computer nerd in charge of your finances. PLM is part of this movement.

Digital Transformation - 70% Failure! $900 Billion Wasted!


Most are not even in pushing PLM anymore, it has basically failed. They are renaming it with a stack of generic buzz words, PDM, MBE, MBD, the digital twin, AR, AI, digital transformation, IoT, IIot, Industry 4.0, AI and more. Not one of these acronym or terms came from engineering. They come from the InfoTech world's ideas of how they think engineering and manufacturing work and not one increases productivity on any level.


Engineering Documentation - A Primer for the PLM Guru!


You are Not Stuck with Autodesk or PTC Subscriptions!


Viable Options to Replace Subscription Only CAD software





Dassault has some kind of plans to completely change their CAD landscape! It is obvious that is to slowly move them to the 3DEXPERIENCE based on Catia, unfortunate for them, no Solidworks user is stupid enough to fall for the plan!

Dassault’s Digital Transformation! Bye, Bye Solidworks?

“The annual Event for 3D design has been renamed and from 2020 the 3D-Experience World will take over to address a wider range of potential users of 3D technology. CEO Gian Paolo Bassi explains the reasons why Dassault Systèmes took this decision.”

The first 3DExperience World Conference sets a new course for Solidworks


Catia 5


Catia 5 was released in 1998, Wow 22 years.

Catia is still by far the worst 3D CAD system. What Dassault can't dazzle you with brilliance, they will baffle you with bullshit.


The Worst to Best 3D MCAD Systems Expanded!


Boeing is still not opting for Catia 6 or the new 3DEXPERIENCE. Even Boeing upper management is not stupid enough to trust Dassault with any "New" processes. They are still suffering with Catia 5 and the failed PLM/MBE (PMI) experiment.

PLM failures are showing up! I have talked to a few engineers that have to work around the requirements of PLM. Those that are in charge, truly have no understanding of the engineering to manufacturing process and needs.

Telecom Giant Ericsson Halts Its PLM Project with Dassault’s 3DEXPERIENCE

The failure of PLM/MBE (PMI) at Boeing is monumental due to poor design practices and incomplete documentation. But today there is not enough applicable knowledge left in engineering to even know it. This chaos is now SNAFU!

Can Engineering Survive without the Drafting Group?

Recommendations to the New CEO of Boeing

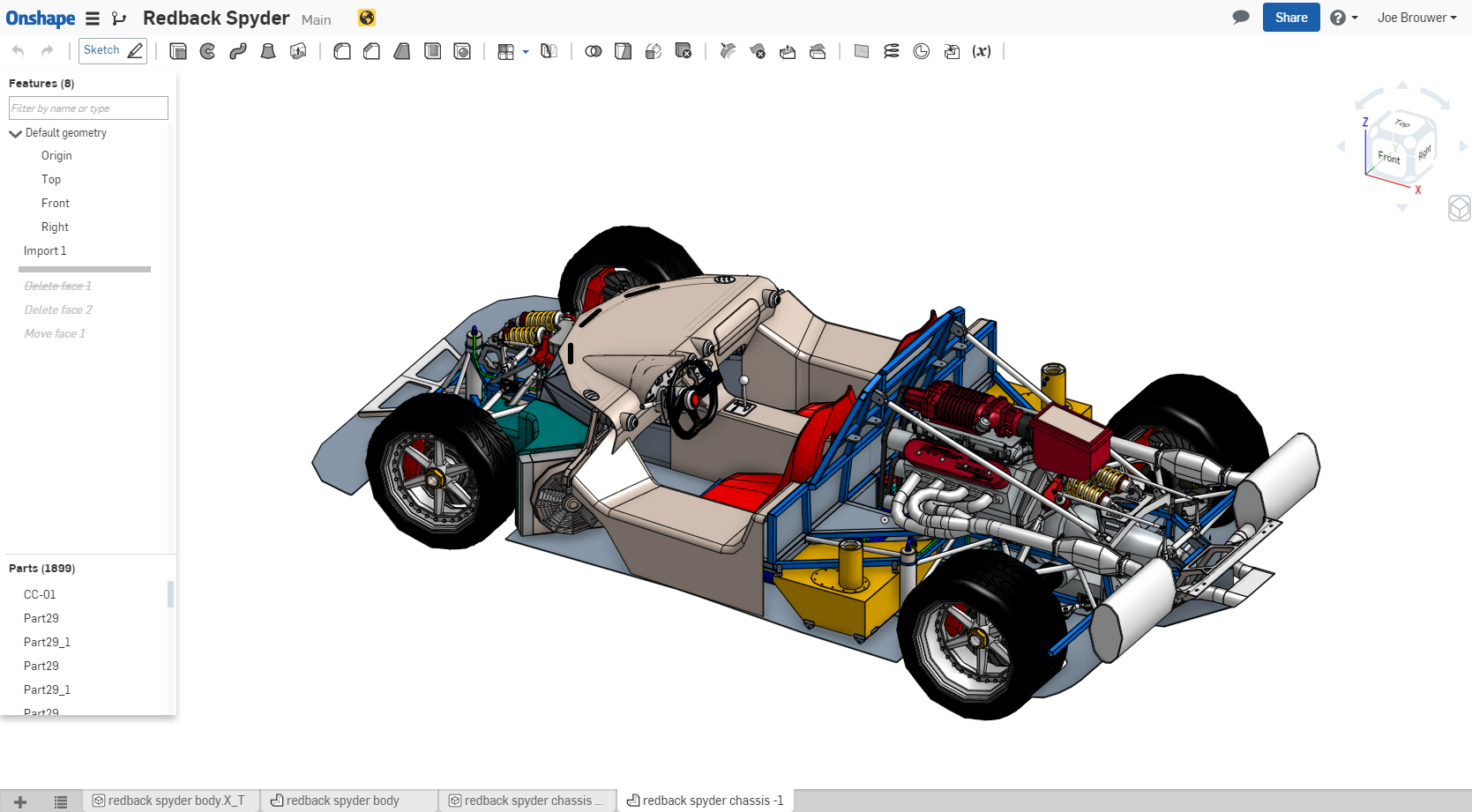

PTC Purchases Onshape

I just scratch my head on this one. Onshape wasn't making any money and PTC hardly has the skills to make it a viable product. Very little will come of this endeavor which cost almost a billion dollars.


Not much new on the Creo end of PTC. They like the rest of the industry are pushing tangential products and services that really do not relate to engineering proper. It looks like they are more involved in selling you a vague digital transformation process than proven engineering solutions.


They are pushing AR very hard. But this is not engineering. They seem to want to move into the manufacturing process. They better be careful manufacturing does not pay much attention to fluff like the InfoTech unworkable processes they push on the millennial engineering management!


I have always thought PTC would be the first company to downsize. They have a huge user base that came on in the early years, not even knowing they are suffering with is stagnant system. Trust me Onshape is not going to add any benefit to this grandpa system.


The Worst to Best 3D MCAD Systems Expanded!



Siemens PLM Software


Not much out of Siemens they are also focusing on PLM and manufacturing solutions. It is amazing how complete industries turn to these consulting companies to run their business. Never realizing that they have less knowledge of their product than they do.


NX and Solid Edge have very few enhancements. None even worth talking about. It all about PLM and every buzz word coming out of "Digital Transformation. Trust me they have lost all contact with the user!! ZW3D Standard is a great inexpensive enhancement or even a replacement for both of these dated systems.


The Worst to Best 3D MCAD Systems Expanded!





The first to lead to the subscription service. Now are pushing the non-engineering services, AR, AI, Digital Twins, etc. Virtually worthless novelty processes.


The problem with Autodesk is that they have so many software packages it is hard for them to focus. I took a job as a Sales/Tech manager for a company that was setting up to sell the Autodesk Manufacturing solution. Trust me the emphasis  was not on product capability, but junkyard dog marketing.


Their Mechanical packages will not be enhanced now that they have their users locked into their software with subscriptions forever. Do you think they will drop the subscription rate? Hell no!! They have stockholder they are beholden to first.


The Worst to Best 3D MCAD Systems Expanded!



The next decade?


It is time for engineering, manufacturing and academia to reevaluate the current engineering system.


We have to get out from underneath these vested CAD company interests. They have destroyed the proven engineering standard processes of the past by allowing the Dassaults of the world along with PLM and InfoTech Gurus to reinvent the wheel with virtually no applicable knowledge of the previous functional engineering system.

Chaos is always the result of trying to reinvent the wheel in a place where the wheel is very well defined. Product knowledge, proven standards and work force continuity is the formula for design success.

The solution isn't really that hard. You can even do it with the crappy CAD systems above. But you do need a complete understanding of the past process. You have to turn to the old draftsman of the past. Pre-CAD. Engineers were not part of this process.


Recommendations to the New Boeing CEO

  • Eliminate Dassault’s Catia 5 PLM and MBE

  • Eliminate the CIO Position

  • Put Engineering back in Charge of Engineering

  • Re-implement the Engineering Standard
    and Document Control Processes of the Past

  • Bring Back the Drafting Group

Can Engineering Survive without the Drafting Group?

Related image

This is a drafting room. No, it was not called the engineering room. Drafting was the basis of all engineering.

I will tell you unless we put engineering back in charge of engineering our next decade is going to be the decade of engineering chaos and there will be no one to post this comment. Virtually all of the manual drawing draftsman will be gone and all of their knowledge will be lost forever! I am looking for someone to take control of all my articles for posterity, when I am gone!! Any takers? LOL


Viewpoints on the Industry




November 8th, 2019

With some of the failures in engineering lately we have to look at the process. Today the engineering process is being defined by the PLM folks. As you have read in my many article these people have no knowledge of how engineering and manufacturing was done in the past.

In the beginning, programs were designed to enhance and automate much of the manual processes, such as Word processing, spread sheets, graphic design and, of course, CAD/CAM.

But as the processes developed the infotechs decided they should redesign these processes without any understanding of the basics. Here is one example.

Zero File or File-Less CAD systems! Debunked!!


Here are a few of my latest articles.

Evolution of Design

Viable Options to Replace
Subscription Only CAD software

Core/Cavity Split in 5 Minutes II

TECH-NET IronCAD Training

IronCAD Video Basics!

June 7th, 2019


The Secret of Product Success! Well Designed Parts!


No matter how small or large the manufacturing company, the basic building block of the product is "part design". All the PLM, MBE, PMI, IoT, Industry 4.0, Digital Transformation, Digital Twinning or Physical Twinning LOL, PDM, etc must be based on well designed parts.

"Design is and always will be the weakest link,
good documentation and checking strengthen that weakness"

"Product knowledge, proven standards and
work force continuity is the formula for design success"

But today's major CAD programs are not focusing on 3D CAD design or documentation they are focused on things that now hinder our design process. Engineering management is not in charge of the engineering process, they are under the control of the CIO, Infotechs and PLM gurus.

"Engineering's only purpose is to make available complete,
concise and unambiguous documentation to manufacturing."

I am thoroughly convinced that the engineering/manufacturing process of the past based on "The Drawing" was not just more productive, but much more productive. All we did was add the 3D model. Engineering has been over computerized and even taken out of the hands of engineering management. We are in a "Work Around World" in both engineering and manufacturing due to PLM, MBE and PMI. We can never get out of it as long as those that are not directly involved in the engineering/manufacturing process are defining and managing it.


Here is my latest articles referencing today's engineering documentation.


PLM/MBE/PMI Absurdity!!


A Short Primer and History of Dimensioning


As I state in my last update below, we are in the age of "Digital Transformation".


Digital Transformation - 70% Failure!  $900 Billion Wasted!


Dassault’s Digital Transformation! Bye, Bye Solidworks?


I now have 3D modeling techniques comparisons with all the major CAD systems as compared to my products, IronCAD and ZW3D, and it isn't pretty. All are based on the time consuming and inflexible constrained sketching. This modeling paradigm is costing millions, if not billions, in an overly complex modeling system, if you can even call it a modeling system.


Here are my exercises. If you are management you really do not know how much time is wasted with this process as compared to my StreamLined Sketching and Feature Based Modeling that is available in all the current CAD packages. But you should also review your Information Management! Can you trust the Fox?


IronCAD vs Fusion 360

ZW3D vs Fusion 360


ZW3D vs Solidworks

IronCAD vs Solidworks



ZW3D vs Creo



ZW3D vs NX


This comparison is incredibly disturbing. CATIA is used by the major aircraft companies I cannot imagine how much time is being wasted with this marginal modeling system.



ZW3D  vs CATIA Lesson 1


This comparison is also quite bothering, the presenter actually designs the parts separately and inserts them in the assembly. It is quite weird, since I have used inventor and its top down modeling functionality is quite good. Just look at the time he wastes as compared to my top down and in context design technique in both IronCAD and ZW3D. But then they are both designed from the bottom up as Top Down and In Context design systems due to their single model environment.

IRONCAD vs Inventor Lesson 1 Assembly

ZW3D vs Inventor Lesson 1 Assembly

January 18th, 2019

Here are my latest articles.

Digital Twin Defined

A Solidworks Competitor?

Production Body Challenge

There is a new buzz word being touted by the Infotech (IT - Information Technology) folks. This is being hugely marketed by Siemens and PTC/Rockwell. It looks like Dassault is focused on the 3DExperience being promoted to its existing users.

Digital Transformation

Digital Transformation is not necessarily about digital technology, but about the fact that technology, which is digital, allows people to solve their traditional problems. And they prefer this digital solution to the old solution.

Old Solution? What the hell are they talking about? This is just a rebranding of Computerization. Truly there is nothing we do that has not been digitalized!

This is part of the FIR (Fourth Industrial Revolution) or Industry 4.0. You really have to admire the arrogance of a group that states that their own technology is the new revolution. It is nothing more than the extension of the TIR (Third Industrial Revolution).

This is a very strange group made up of PLM gurus, PHD, MSME, BSME, Infotech gurus that seem to be a bunch of bobble heads that are manipulated by companies like Siemen, PTC/Rockwell and Dassault. I do not see monetary benefits to most of the minions. These companies use these folks, knowing most have huge buttons on self importance, to foster the cause. When you read an article promoting FIR, you see it is usually written by a marketing employee of one of those companies.

But is not just the infotech world that is pushing this, it is being pushed by the World Economic Forum in collaboration with McKinsey & Company. This is a huge management firm that supports the largest of companies. You can only imagine the amounts of money that are involved.

It is a bit bizarre to me to watch companies like Boeing, that were the leaders in their industry, go to these outside firms for management support with their industrial solutions, and not in a trivial way.

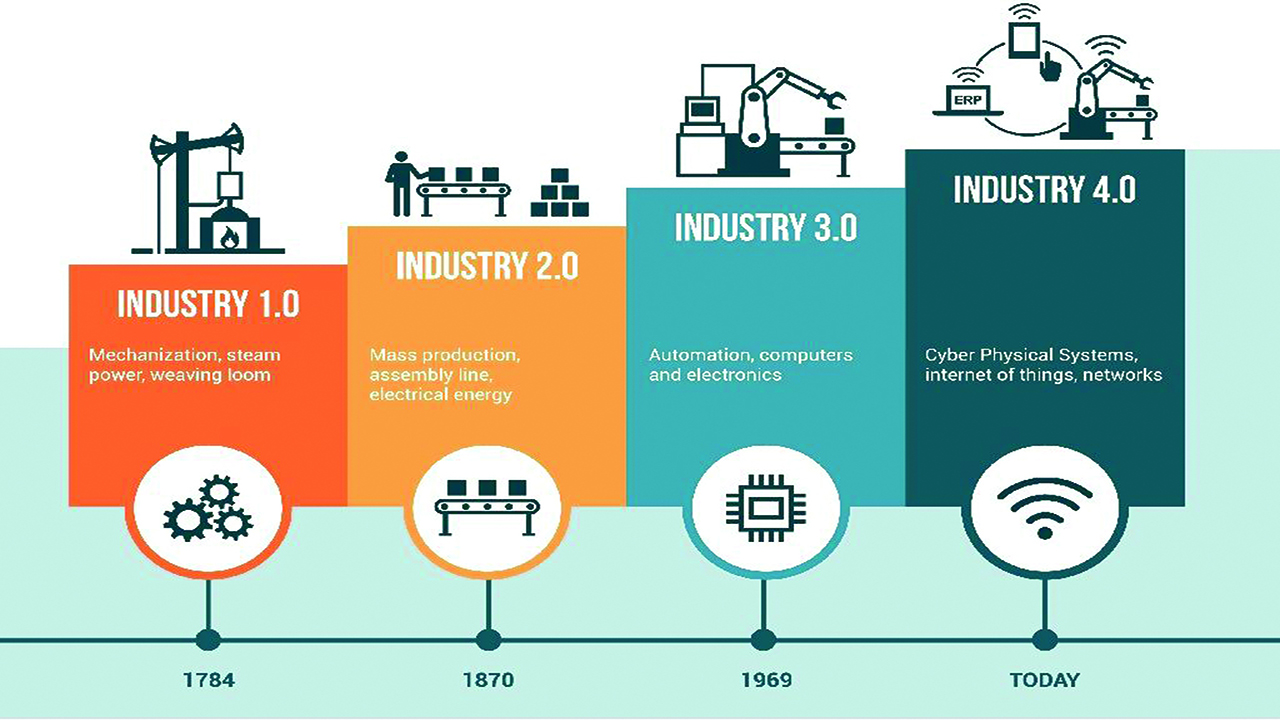

Fourth Industrial Revolution -
