3D Modeling Techniques
ZW3D vs Solidworks Lesson Sixteen
Primitive Shape Design
Streamlined Sketching/Feature Based Modeling

Modeling note:

It is funny, you may not realize how you model because you have many ingrained processes from the past. I have been doing Boolean (direct edit) design since the beginning of solid modeling in CAD. As I have been doing these comparisons I realized that I design in shapes. ZW3D has primitive shapes and robust direct edit functionality. I look at the drawing and pick out the basic shapes of the part instead of creating a sketch. You can see that in this part.

I saw some Fusion 360 exercises online and I decided to compare ZW3D. It quickly turned into a study in modeling techniques. I have created many comparisons to Fusion 360, Onshape, Solid Edge, NX, Creo, Catia and Inventor lessons to show the difference between ZW3D and my modeling techniques. I found the presenters working identically wasting massive amounts of time with overly complex constrained sketching procedures. I was so unimpressed that I decided to model the parts or assemblies showing my modeling techniques plus 's superb design system.

3D Modeling Techniques Defined

Many of these modeling techniques can easily be implemented even within their existing system. I call it Streamlined Sketching and Feature Based Modeling. Please review a few of the above ZW3D comparison lessons, there are some very stark differences.

SolidWorks Exercise 23 | SolidWorks Tutorial | SolidCad

While creating 3D models from drawings is the very best way to learn 3D CAD and maybe some design techniques it does not expose the designer to the design flexibility necessary in design. IronCAD is all top down due to the single model environment. Creating mating parts is a cruise. But modeling is just one aspect of a well designed productive 3D CAD system.

Solidworks is a marginal 3D CAD system based on the dated Pro/e history based modeling system released in 1988. I sold Pro/e years ago and found it not productive enough for our engineering department. We use what we sell. That gives us the experience to effectively support our user base.

29 Years of 3D CAD Incompatibility - The New Generation of 3D CAD!!

Is 3D CAD Productivity an Oxymoron?

ZW3D vs Solidworks

I would do a video, but I really am not good at it. So I will show you step by step. I will try and get ZW3D support to create one. They are very good.

The modeling technique is hugely responsible for the level of productivity. Those of you that are only trained in the sketch, sketch, constrain, constrain world are truly limited by not using the freedom of feature based design, that is available in even the most Solidworks-ish of CAD systems. If your designers are designing in these very unproductive and time consuming processes it might be time to review your standard design processes. Don't have any do you?

These lessons have actually turned into exercises in modeling techniques as compared to showing a more productive CAD systems. Again, I say, there are many different ways to model a part. I see with my exposure to direct edit modelers like CADKEY, I rarely sketch like you see the Solidworks fellow doing. I have always created my basic sketches by mostly creating offsets and extending and trimming or. It seems to be much easier. I never put in a fillet that can be created later. What do you think?

Since ZW3D is a sketch based product with a primitive shape option I will create the model in both processes. The sketched based model will be done with StreamLined Sketching to show the incredible simplicity and productivity over the de facto constrained sketching.

I first go do configuration and set the units to MM.

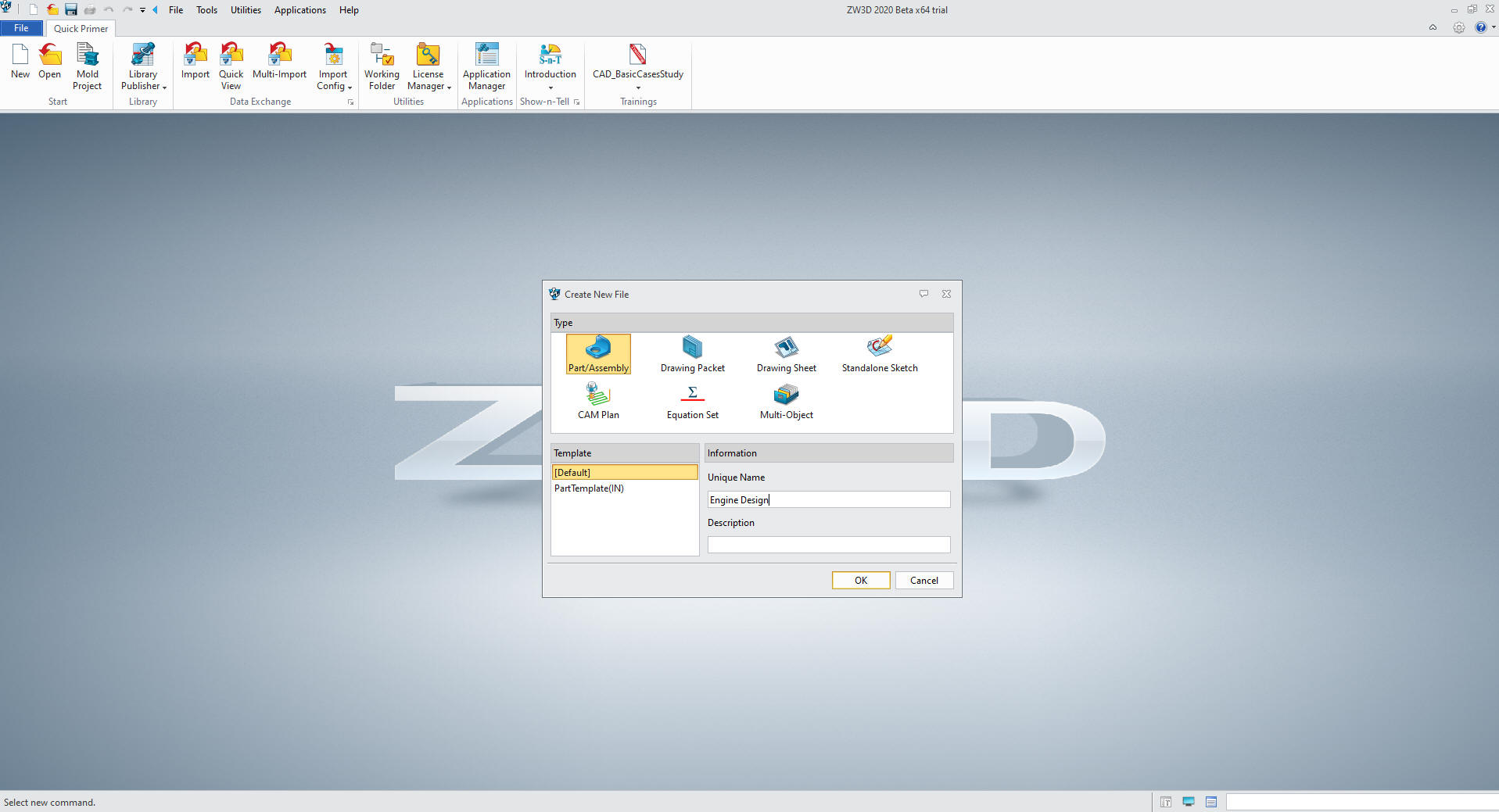

I create a new Part/Assembly file.

Note: When doing production design you can use the Multi-Object file to create a part file under a top file. You then could keep a legacy of modifications or similar parts in a single file

Modeling with Primitive Shapes

We are already in millimeters so lets get started.

We create a sketch on the YZ plane with Z selected as up.

I select a block from the primitive shapes and locate and size the block. Notice I have located it from the XOY0Z0 to making locating the features easier. I just put the information in the appropriate boxes on the left.

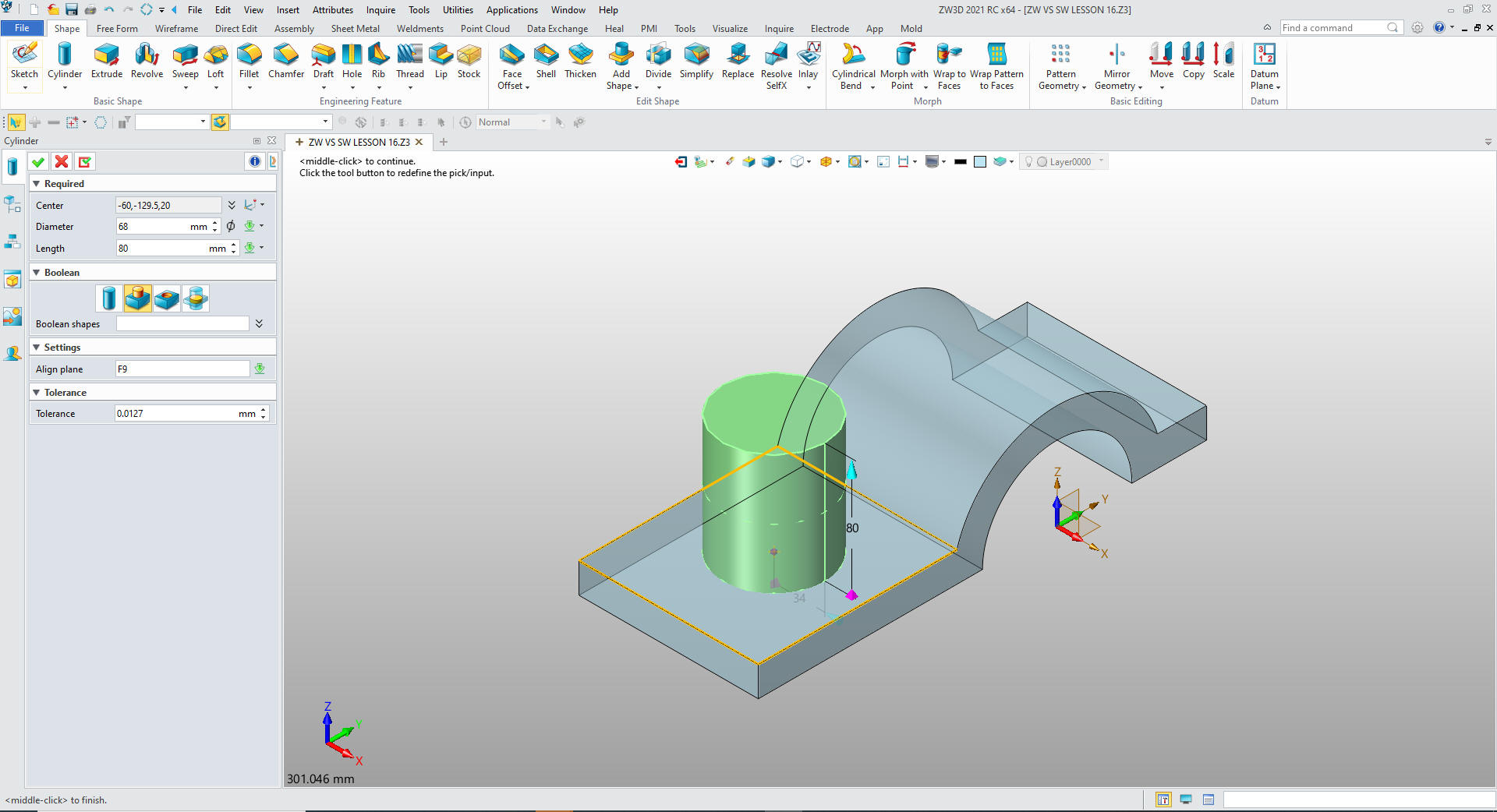

We will now select cylinder from the primitive shapes, align it with the front faces and set it to X0Y0ZO and size it just imputing the information and set it to add.

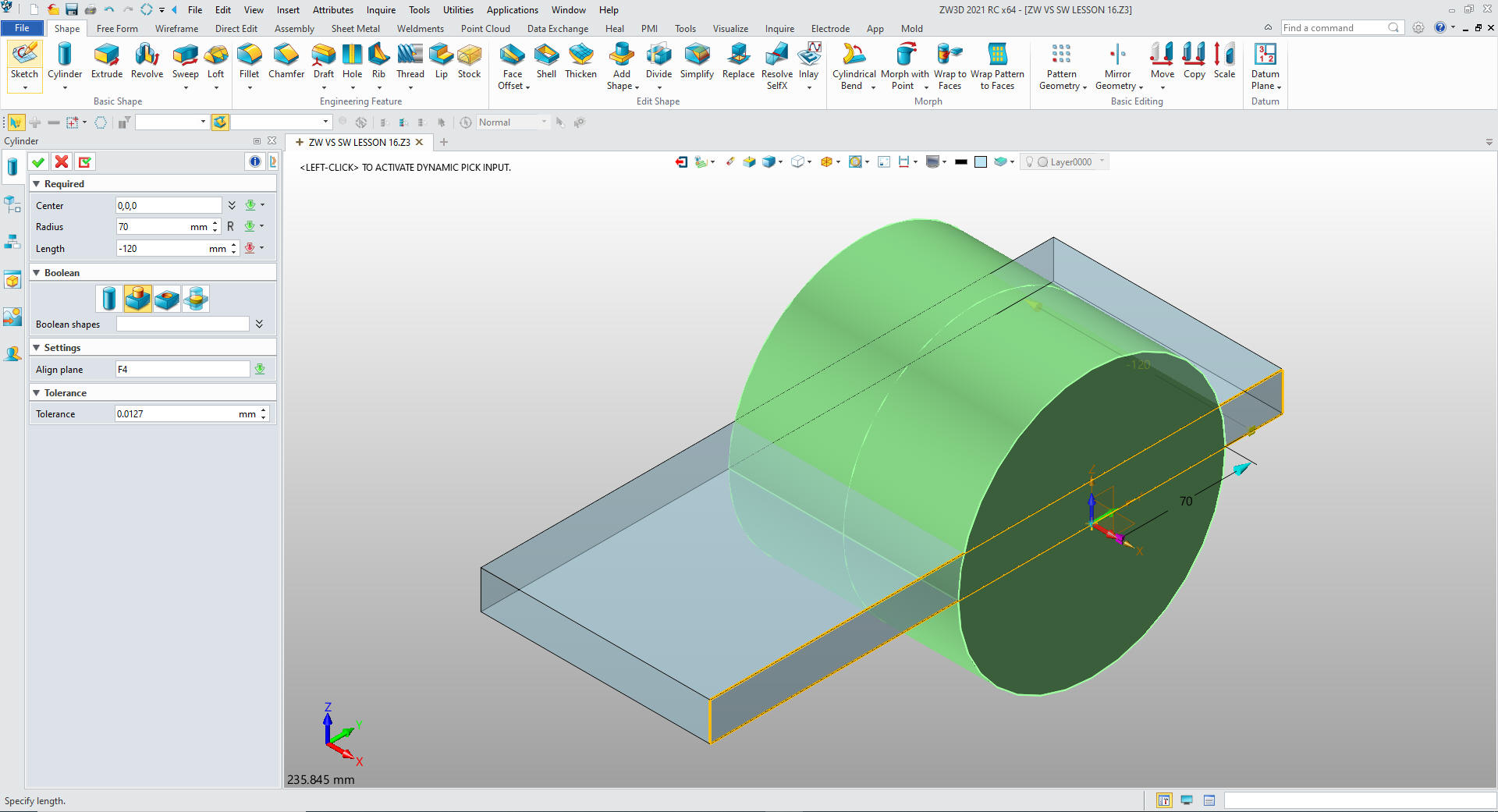

Now for the center hole, we again select cylinder from the primitive shapes and align it with the existing cylinder, size it and set it to remove.

We need to clean up the bottom. We select block from the primitive shapes and locate other front faces using the corners. We again size and and set to remove.

I know you are probably seeing this feature based design for the first time. Realize ZW3D is basically a sketch based system and we could do this part just like the Solidworks fellow! But working working with features gives you a more real world design experience.

We again select cylinder and locate and size the front boss and set to add.

Now for the upper cylinder. We select cylinder an locate it from X0Y0Z0 168 in Z and  -20 in X and size it set it to add.

We need to create a sketch for the rib. But we notice we have to create trim the cylinder to make sure the rib matches the cylinder! I think that is the design intent. We will create a sketch to trim the cylinder!

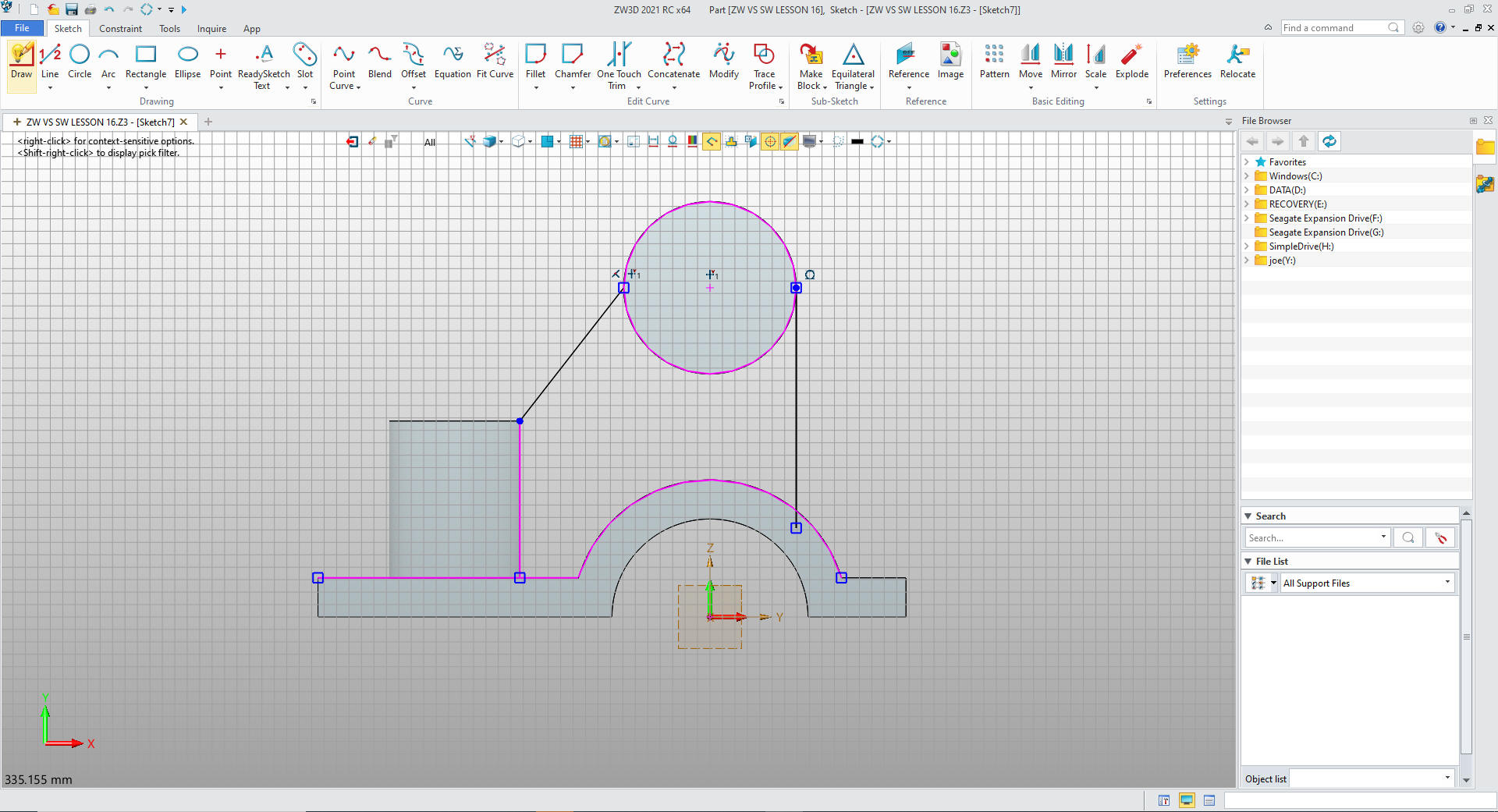

We reference the top of the cylinder create a center line and offset the line 10mm.

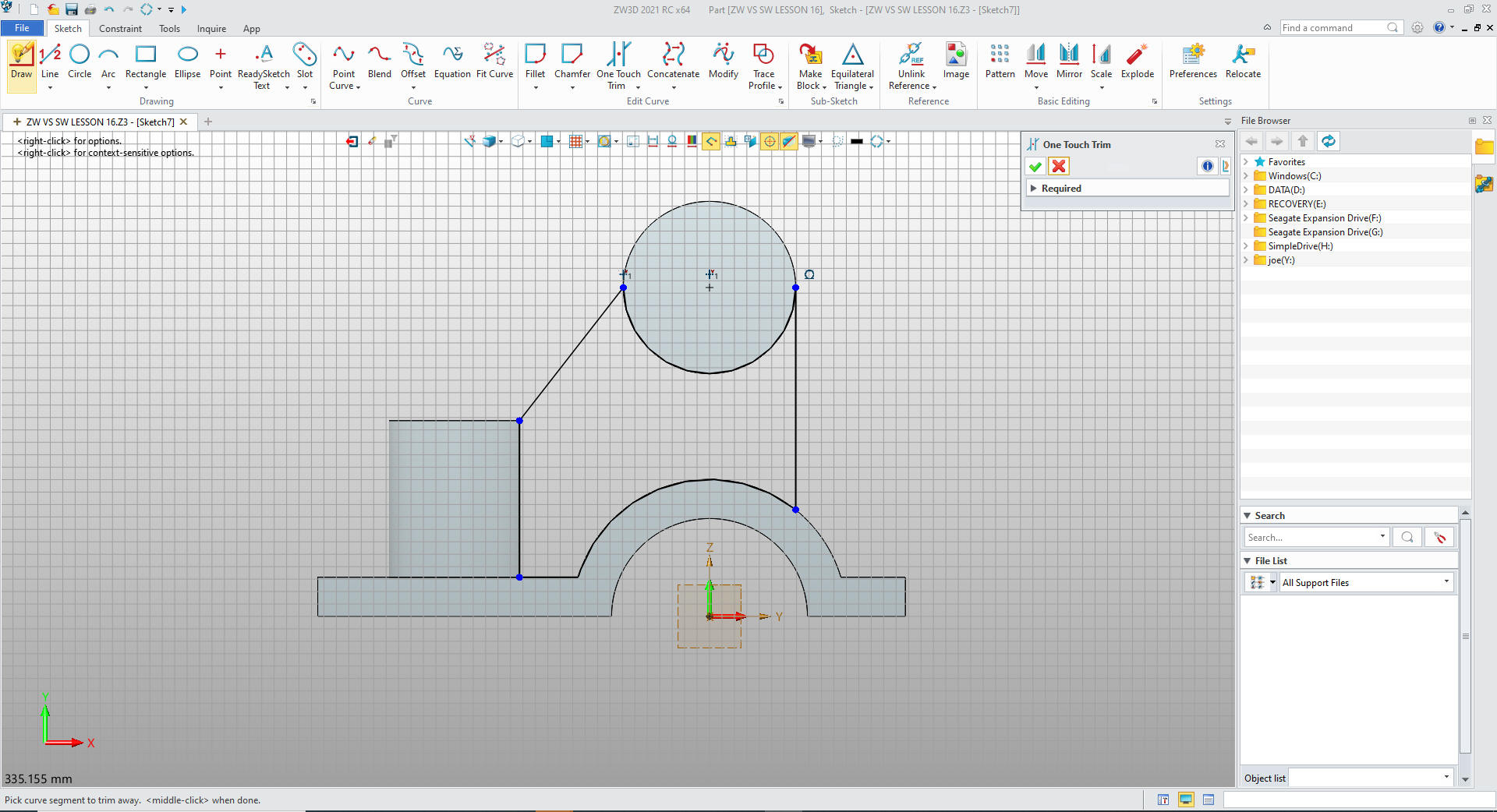

We unlink the reference create the cut line and delete the construction lines and trim.

We exist the sketch and extrude the profile setting to remove.

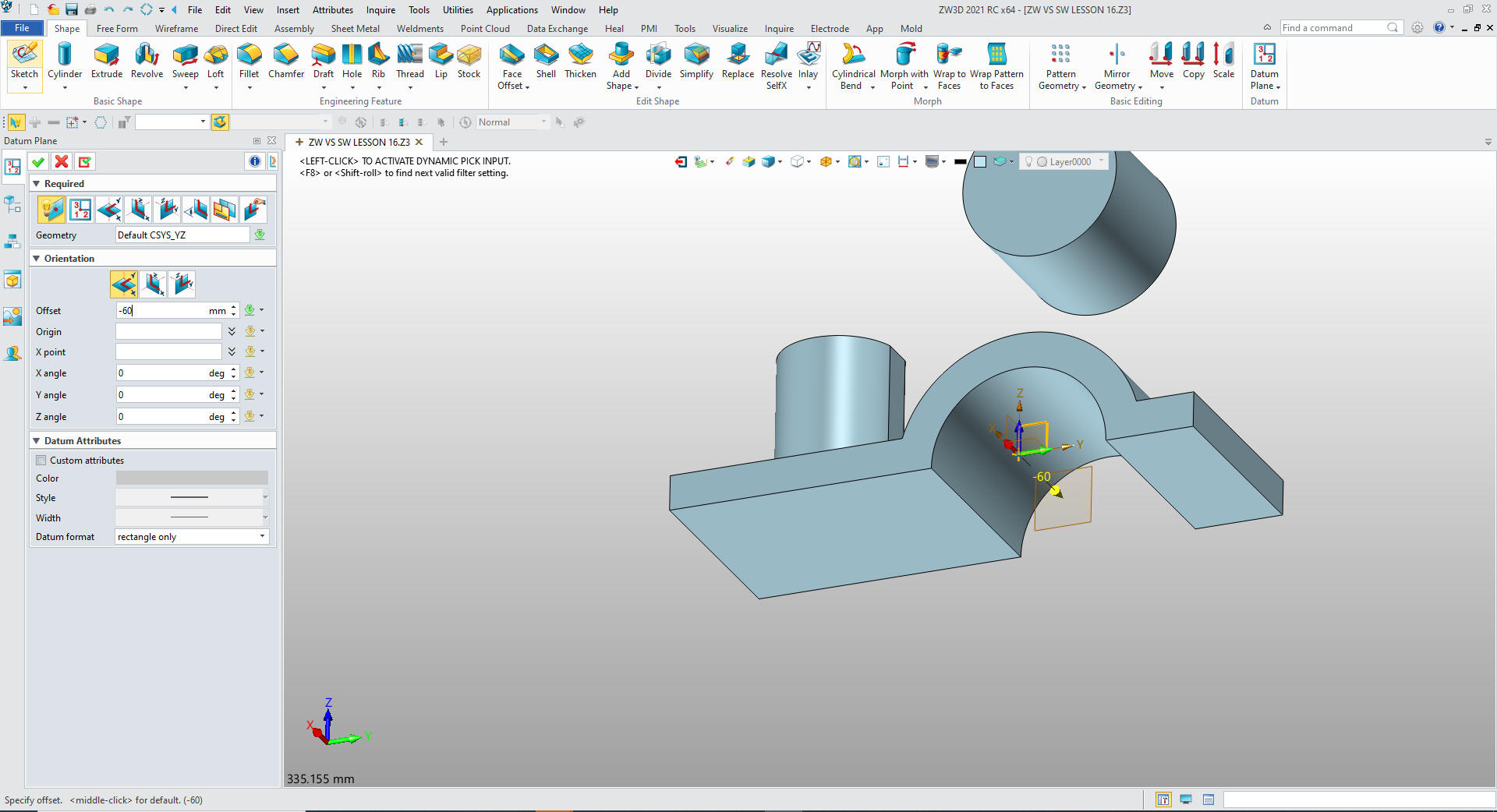

We create a datum off set 60mm from the YZ plane to set up our sketch.

We then create our sketch. We create the necessary reference entities from the existing features.

We unlink the reference entities and trim as required.

We exit the sketch and extrude it. We set the extrude command the the symmetric option and put in 10mm and set to add.

We will put a hole in the boss and cylinder using cylinder primitives aligned with face and center size and set to remove.

Now for the fillets.

We will use the hole command for the two holes. That way we can put them in with one step. We locate them at the center of the fillets.

The part is done. I find feature base design much more fun!

Here is the drawing if you would like to create the 3D model.

You can see the two process that ZW3D offers are both hugely more productive than the tedious constrained based sketching.

You can see more on modeling techniques here.
